This SpeedPlate and Collet Set is a complete balancing solution! Included are our best-selling collet kit and brand new SpeedPlate kit. The system fits any machine with a 40mm bore.
Fits 4-lug, 5-Lug, 6-Lug and 8-lug passenger car, SUV, and light truck wheels with bolt patterns (PCD) between 95.25mm and 180mm or 3.75” to 7.08”. Low-taper centering collets Range 2.00-4.70".
Contents:
| MT-RSR Part # |
Description |
Qty |
| 3101-40 |
Low Taper Collet 2.00"-2.30" #1 |
1 |
| 3102-40 |
Low Taper Collet 2.30"-2.60" #2 |
1 |
| 3103-40 |
Low Taper Collet 2.60"-2.90" #3 |
1 |
| 3104-40 |
Low Taper Collet 2.90"-3.20" #4 |
1 |
| 3105-40 |
Low Taper Collet 3.20"-3.50" #5 |
1 |
| 3106-40 |
Low Taper Collet 3.50"-3.80" #6 |
1 |
| 3107-40 |
Low Taper Collet 3.80"-4.10" #7 |
1 |
| 3108-40 |
Low Taper Collet 4.10"-4.40" #8 |
1 |
| 3109-40 |
Low Taper Collet 4.40"-4.70" #9 |
1 |
| 20-PROS-40 |
SpeedPlate for 4-lug and 8-lug wheels |
1 |
| 20-5LUG-40
|
SpeedPlate for 5-lug wheels |
1 |
|
SpeedPlate for 6-lug wheels |
1 |

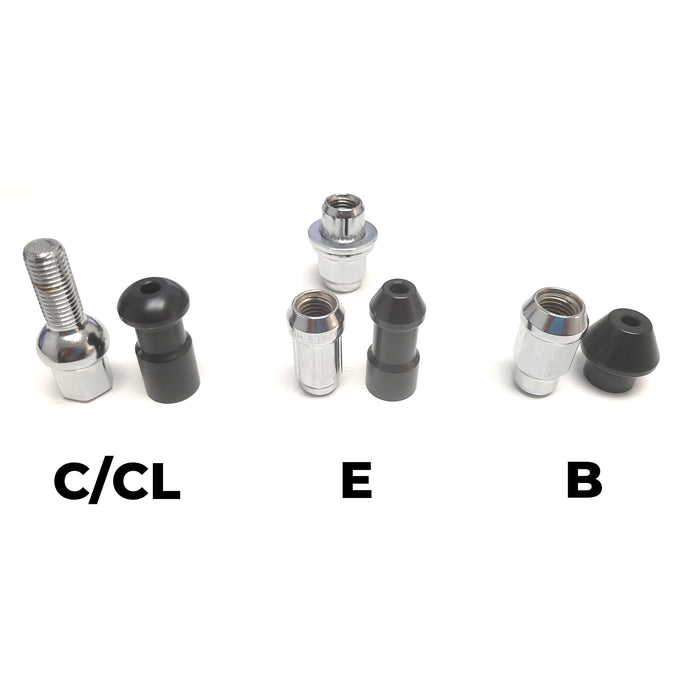

| 20-TIP-B |
Torque Tips - Style 1 |
6 |
| 20-TIP-C |
Torque Tips - Style 2 |
6 |
| 20-TIP-CL |
Torque Tips - Style 2 Long |
6 |
| 20-TIP-E |
Torque Tips - Style 3 |
6 |
Interchangeable Part Numbers:
This kit is the first of it's kind!
The collet kit is similar to:
Haweka # 51425
Snap-on # EEWB3-4
John Bean # EAK0315G93A
Hunter # 20-1846-1
Coats # 85609499
The speed plates can replace:
Snap-On #EEWB3-1A
Corghi # 900200400A
Haweka # WB4029-40
Coats # 8113841
Hunter #20-2123-2
MT-RSR Insights:
These Collets are made in the USA and Precision machined. When you buy a set of 9 you can use them on a wide range of wheels. If you are having a problem balancing clad wheels, these are the solution! The dual sided design keeps it from bottoming out.
See our video on the benefits of these cones and how to use them here!
Our Wheel Balancer SPEEDplate makes balancing wheels faster and easier than ever. Featuring a high-precision metal and durable plastic design, the SPEEDplate is designed to disassemble when dropped, preventing permanent damage. With just a few clicks, you can easily put it back together and you'll be ready to balance your wheels in no time. Traditionally, wheel balancing clamping tools have been slow to set up and use, but with this one-finger adjustment design, it is a true SPEEDplate.
