MT-RSR LCM Ultra MD Wheel Balancing System

MT-RSR LCM Ultra MD Wheel Balancing System - for 40mm Shaft Wheel Balancers

Light, Commercial, and Motorhome Truck Kit

LCM System Instruction Guide

Ultra Accurate - Ultra Durable. Finally a clamping system that match the highest quality balancing machines on the market.

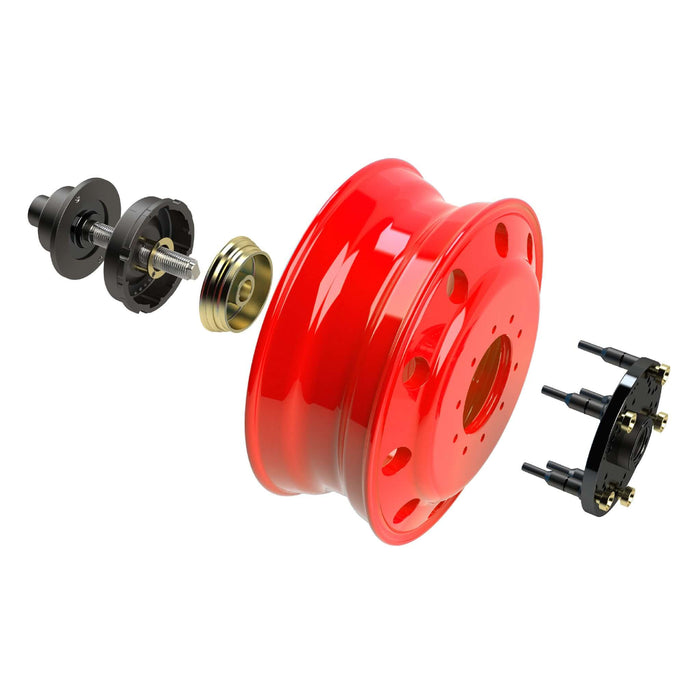

This system is compatible with virtually all wheel balancer brands and models. To secure the assembly, utilize a wing-nut or SpeedNut on balancers with a threaded shaft. For balancing machines equipped with auto shafts, utilize the OEM provided handle.

This kit allows technicians to easily balance wheels for 1/2-Ton, 3/4-Ton, 1-Ton, and some larger Trucks.

Wheel Center Bores Bolt Patterns Supported:

• 4.56" (GM 6 x 6.5")
• 4.60" (GM 8 x 6.5")
• 4.77" (Dodge/Ram 8 x 6.5")
• 4.88" (Ford 8 x 6.5")
• 124mm (GM 8 x 180mm)
• 125mm (Ford 8 x 170mm)
• 5.25" (GM 10 x 7.25")
• 5.46" (Ford 10 x 7.25")
• 138.8mm (Ford 6 x 180mm)
• 142mm (Ford/Ram 8 x 200mm)
• 154mm (GM 8 x 210mm)
• 161mm (Mercedes/Dodge/Freightliner 6 x 205mm)
• 164mm (Hino/Isuzu 6 x 8.75")
• 170mm (Ford 8 x 225mm & 10 x 225mm)

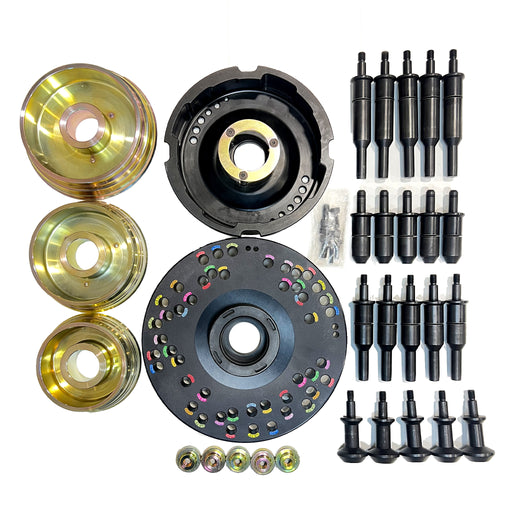

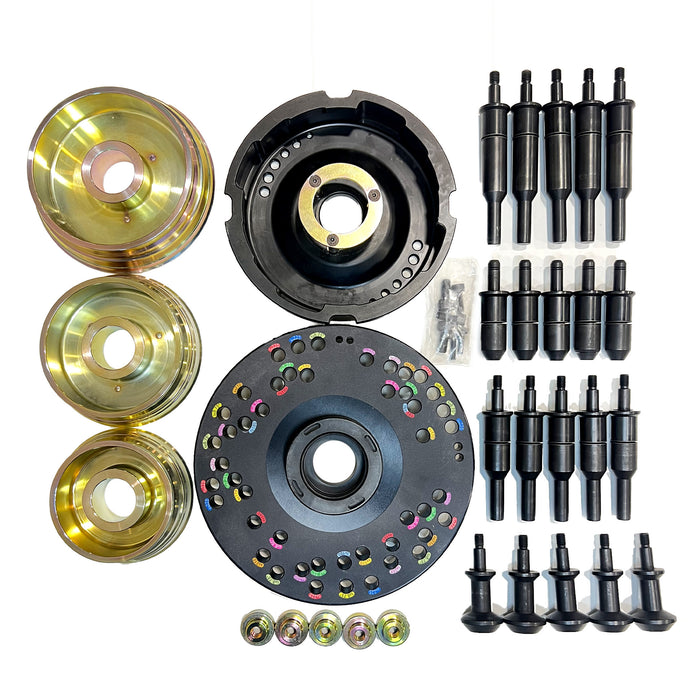

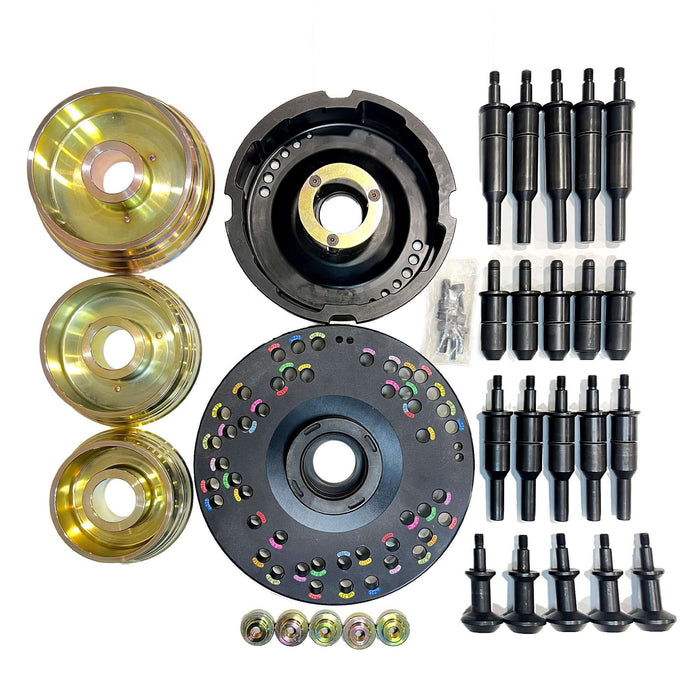

Kit Includes:

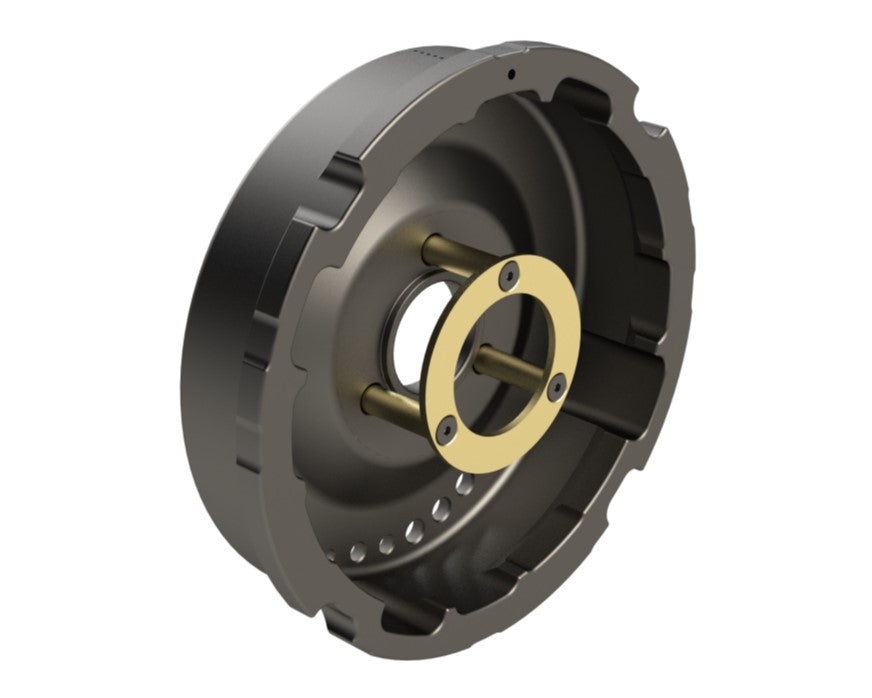

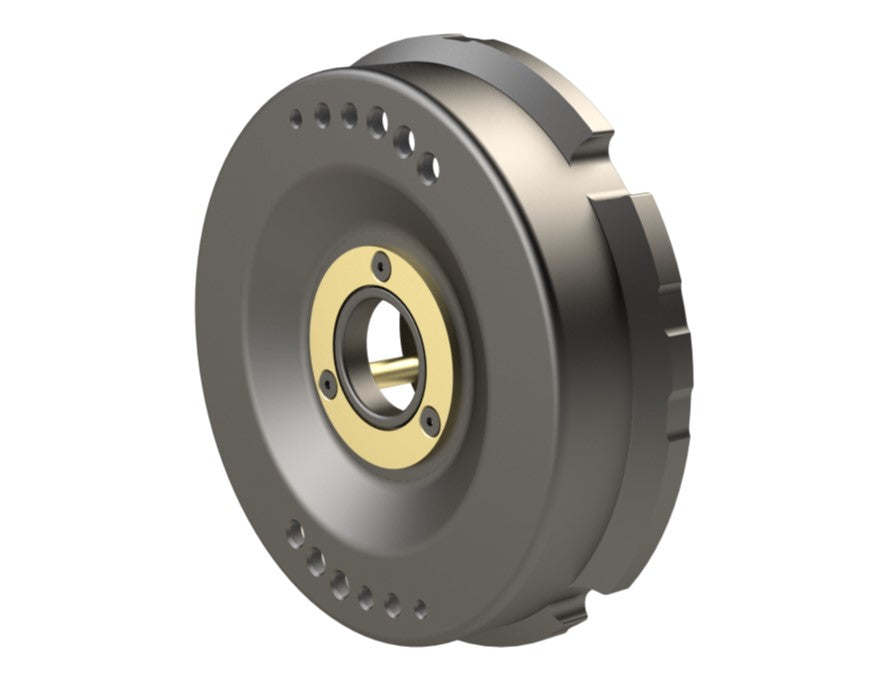

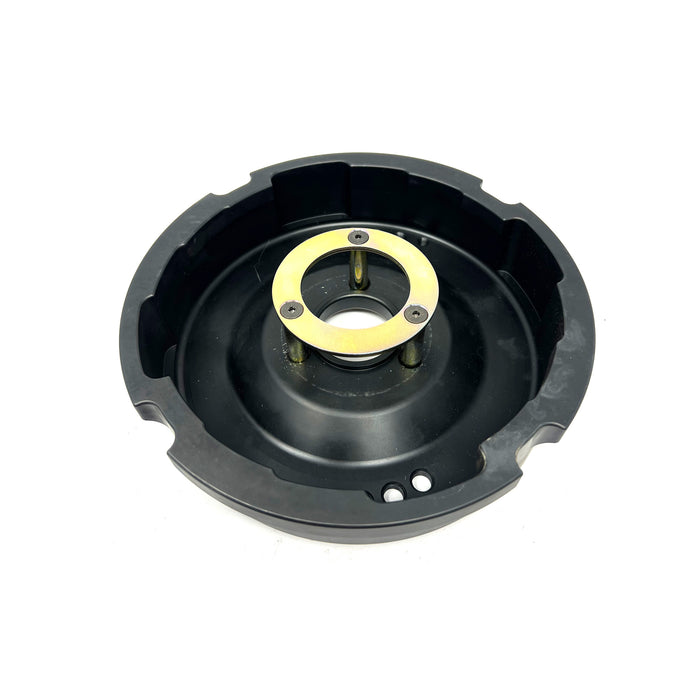

(1)    22-LUSD-40 - LCM Ultra spacer disk

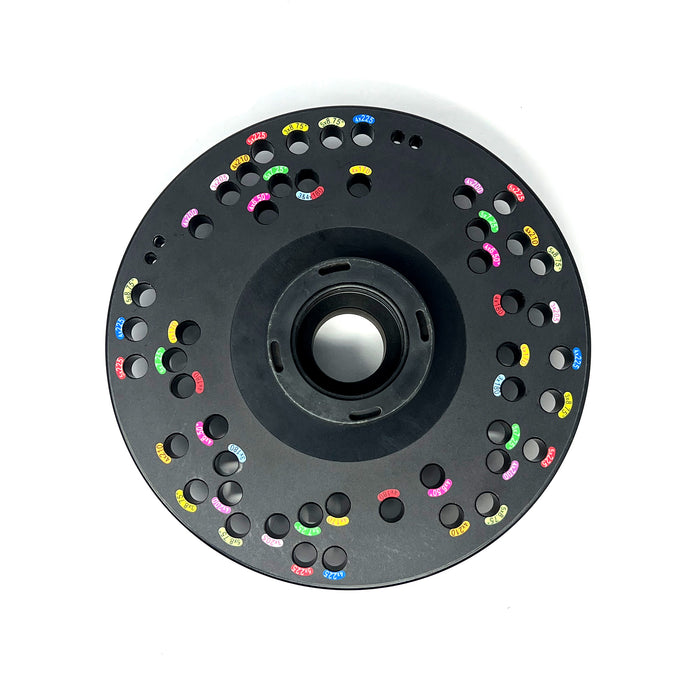

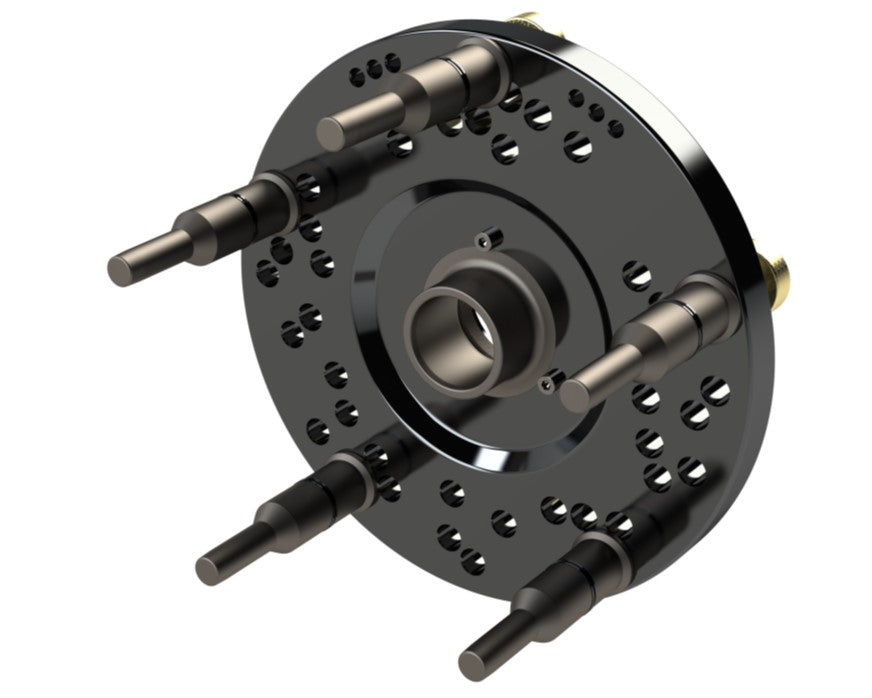

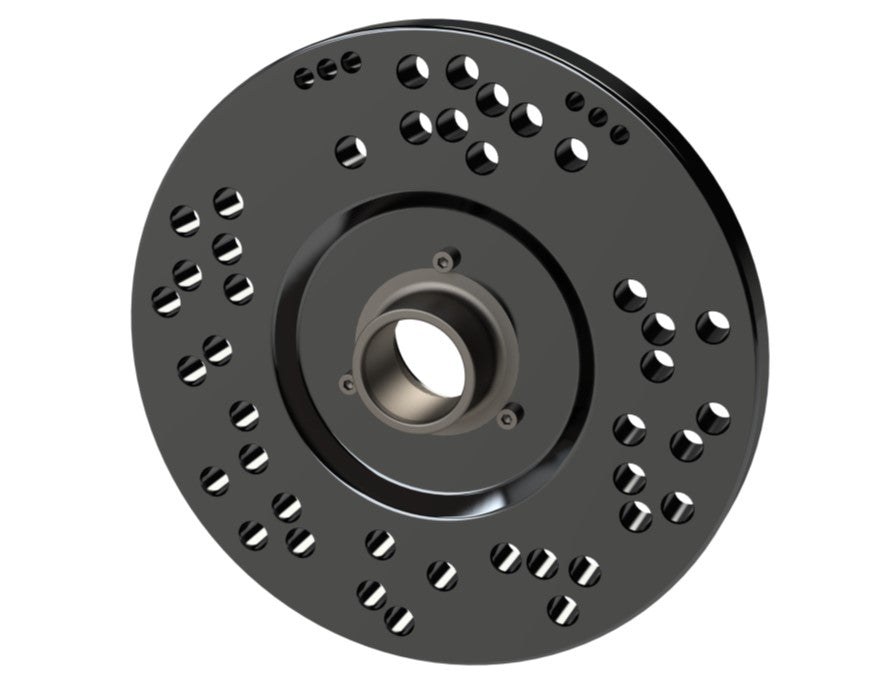

(1)    22-CTP-40 - LCM CenTor Plate

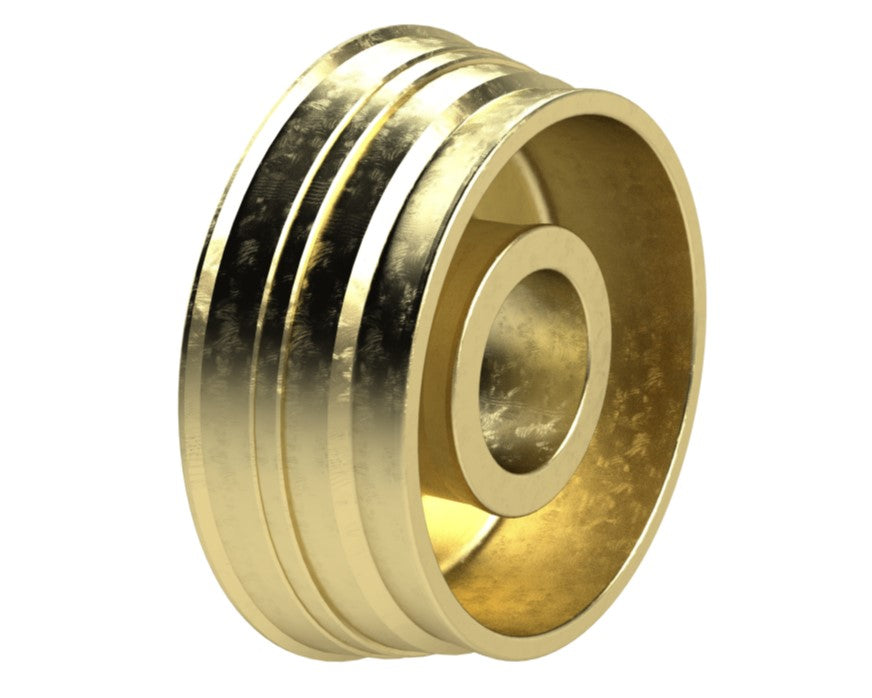

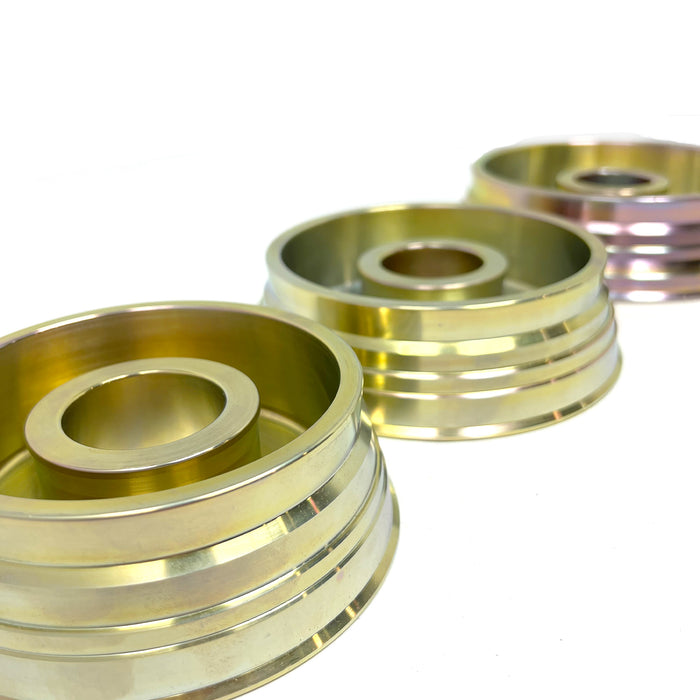

(1)    22-LUC1-40 - LCM Ultra collet #1

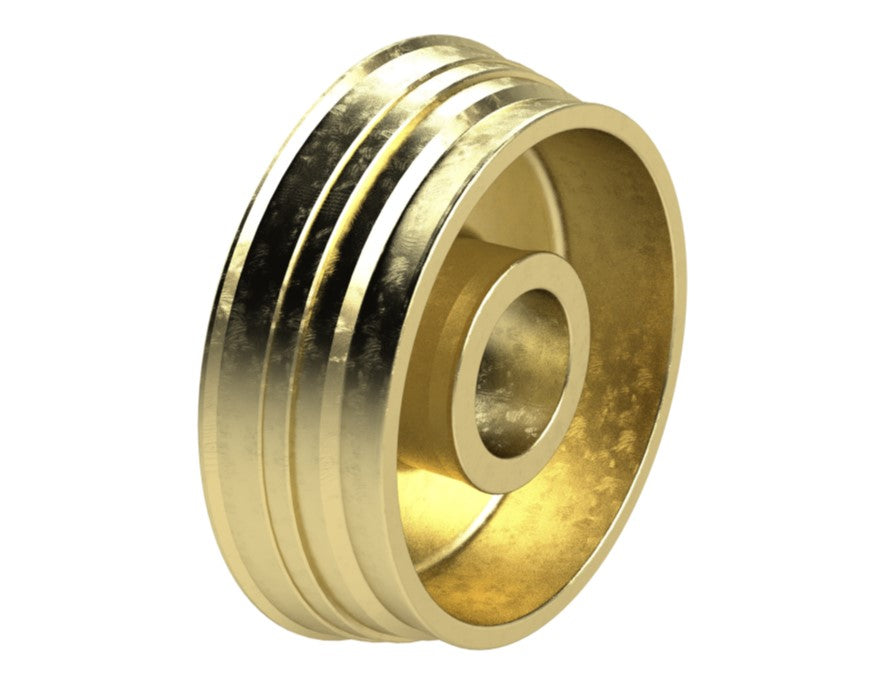

(1)    22-LUC2-40 - LCM Ultra collet #2

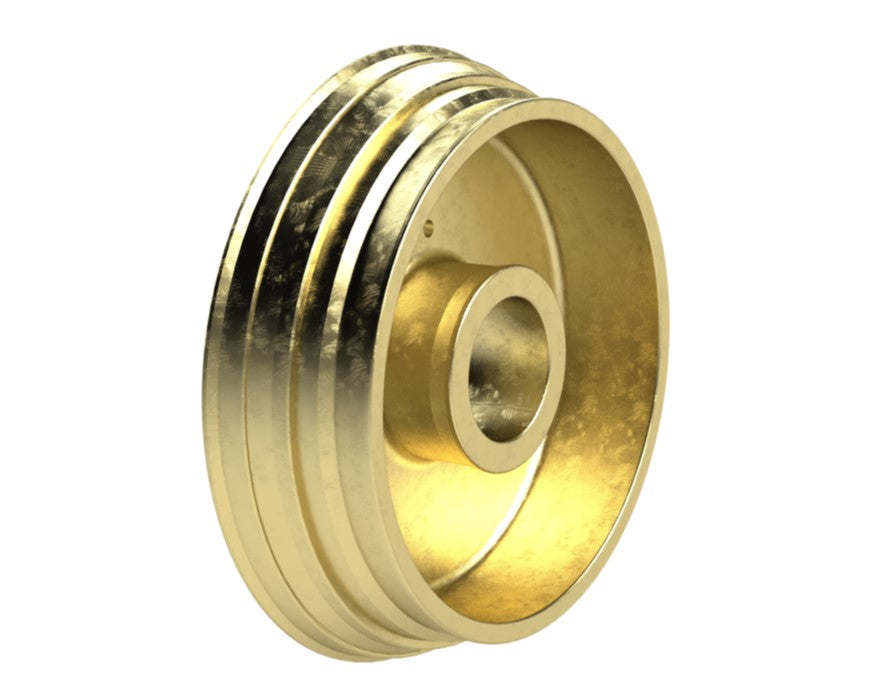

(1)    22-LUC3-40 - LCM Ultra collet #3

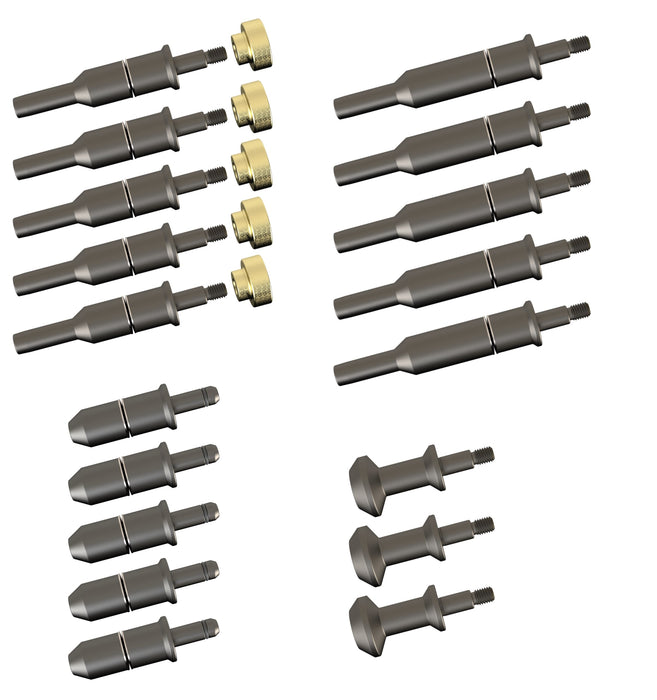

(5)    22-LSTUD-A - LCM CenTor Stud - 65mm Length - w/ OSB Extension
(5)    22-LSTUD-B - LCM CenTor Stud - 90mm Length - w/ OSB Extension
(5)    22-LSTUD-C - LCM CenTor Stud - 65mm Length
(3)    22-LSTUD-D - LCM CenTor Stud - for Isuzu N-Series, Mitsu. Fuso, GM W-Series

Similar to:

Haweka HW280 400 189

Interchangeable Part Numbers:

8300000400, 20-3116-1, 20-3116, 2031161
