Description

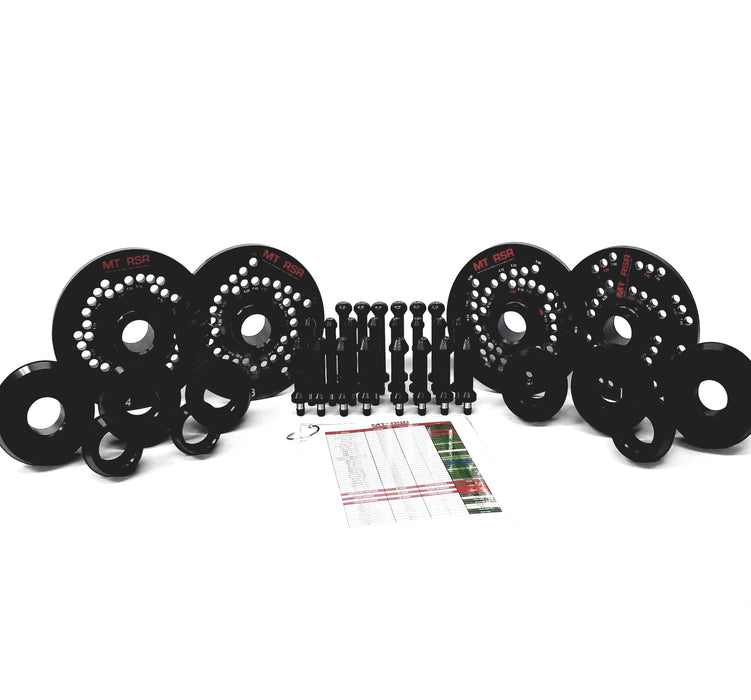

Pin Plate and Collet Set
MT-RSR Part# | Description | Qty: |
4021-40 | Pin Plate #1 | 1 |
4022-40 | Pin Plate #2 | 1 |
4023-40 | Pin Plate #3 | 1 |
4024-40 | Pin Plate #4 | 1 |
4025 | Wide taper Stud (A) for pin plate 3.2 Long" | 8 |
4026 | Small Taper Stud (B) for pin plate 3.7" Long | 8 |
4027 | Round top Stud (C) for pin plate 4.1" Long | 6 |
4029 | Reference chart for Pin Plate system | 1 |
MT-RSR Part # | Description | Qty |
3101-40 | Low Taper Collet 2.00"-2.30" #1 | 1 |
3102-40 | Low Taper Collet 2.30"-2.60" #2 | 1 |
3103-40 | Low Taper Collet 2.60"-2.90" #3 | 1 |
3104-40 | Low Taper Collet 2.90"-3.20" #4 | 1 |
3105-40 | Low Taper Collet 3.20"-3.50" #5 | 1 |
3106-40 | Low Taper Collet 3.50"-3.80" #6 | 1 |
3107-40 | Low Taper Collet 3.80"-4.10" #7 | 1 |
3108-40 | Low Taper Collet 4.10"-4.40" #8 | 1 |
3109-40 | Low Taper Collet 4.40"-4.70" #9 |
1 |
Fits the following wheel balancer brands:
Accuturn - 1200, 1220, 1250, 1400, 1420, 1450, 1500, 1520, 1550, 1650, 1820, 1850 (5100, 5323, 5500, 5600 With Serial #s 51-0623 To 51-1457)
Bear - 80-100, 80-303
Beisbarth - All Models
Bosch - All Models
CEMB - All Models 1995 And Later, (Excluding Truck Models)
Coats - (Previously Upgraded to 40mm Shafts) 700, 800, 825, 850, 925, 950, 1000, 1025, 1050, 1055, 1250, IBS 2000 (Shaft Must Be Verified 40mm), 1750, 1800, 1850, 775, 875, 1175, 6275HS, XR Balancers
Corghi - All Models 2007 And Later
FMC - All Models
Hofmann - All Models
Hunter - All Models
John Bean - All Models
Kwikway - All Models
Launch - 408, 500
Snap-On - Shaft Must Be Verified 40mm
Sicam - All Models
MT-RSR Insights:
MT-RSR is now offering a pin plate system with collet set. Most people would agree that the key to balancing any tire is to make sure that it is centered. With the old method of cone and pressure cup you are relying on the hub for centering. With the pin plate system, you are using the lug holes to center. This will avoid misalignment by improper and inconsistent mounting on the balancer. Our kit includes 4 plates with pins and the reference chart. The Collets are also Made in the USA and Precision machined. When you buy a set of 9 you can use them on a wide range of wheels. If you are having a problem balancing clad wheels, these are the solution! The dual sided design keeps it from bottoming out.
Made in the USA
