Description

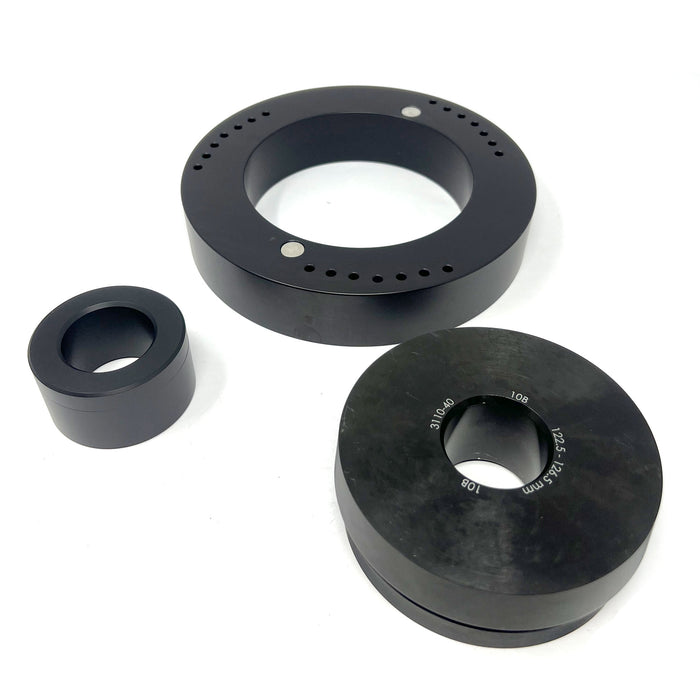

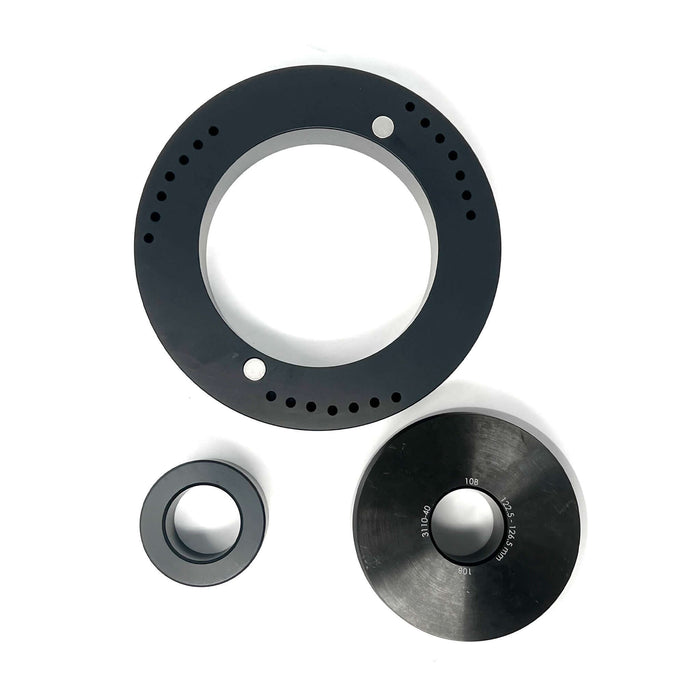

Universal Spacer Disc Assembly for Wheel Balancers with #10 Collet

Includes:

(1) - 2055 Universal Spacer Disc

(1) - 3110-40 Low Taper Collet - 4.7" - 4.9" - #10

Designed for all makes and models of Wheel Balancer. Provides added clearance for larger cones and collets. Can also be used to offset wheel flange mounting on high positive offset rims.

Necessary tool for back-coning and balancing wheels with 8 x 6.5", 8 x 170mm, and 8 x 180mm bolt patterns with large bores.

Similar to: Snap-On EEWB3-5A, Hunter 46-653-2, Coats 560639401, 667420103188 and more.

INSTRUCTIONS:
1. The universal spacer disk must be centered on the balancer to work properly
2. With your fingers, press the three supplied dowel pins into the hole pattern that matches your wheel balancer
3. Mount the universal spacer disc to the wheel balancer to ensure the dowel pin pattern is correct
4. Pound or press the dowel pins to ensure they are fully engaged in the holes

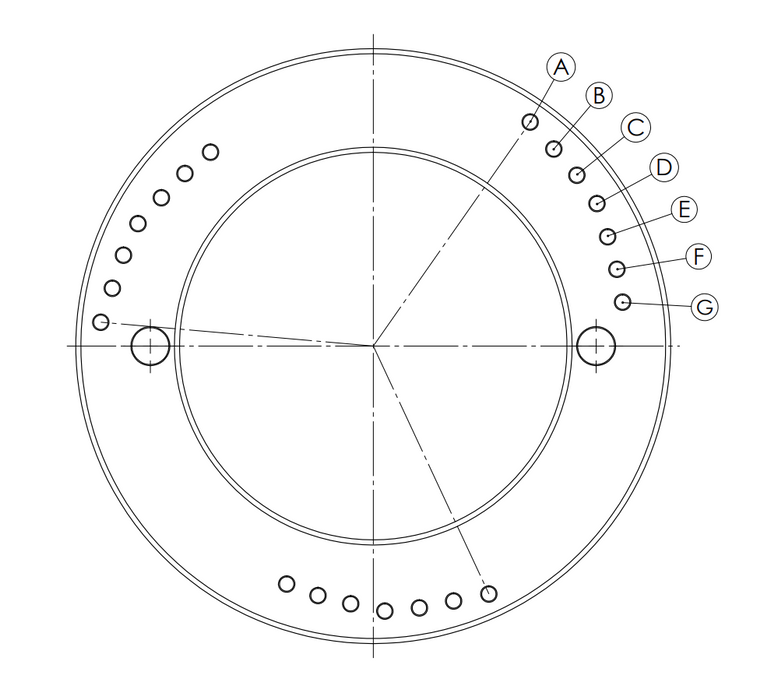

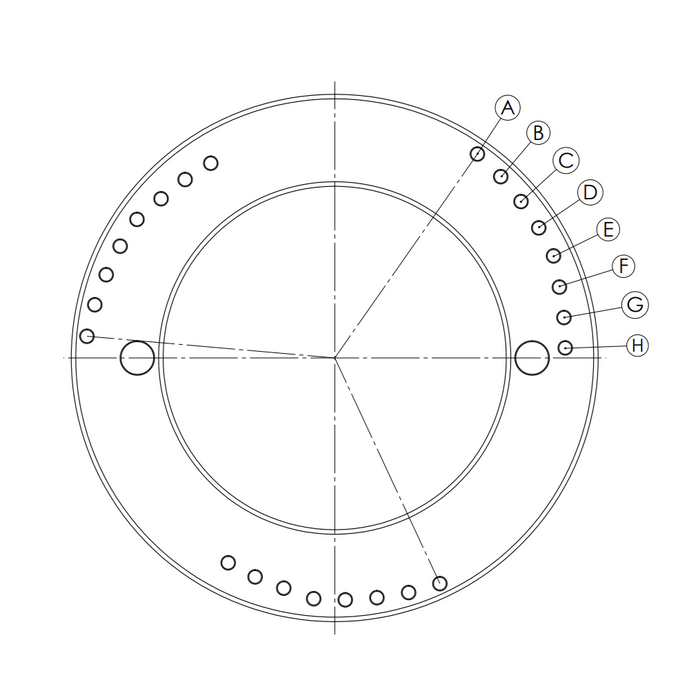

Hole Bolt Circle Machine Application
A  Ø7.495 190.5mm  Accu, Beissbarth, Facom, Fasep, Hunter, Sicam, Sun
B  Ø7.323 186.0mm  Corghi, Falp, Fasep, Mondolfo, Muller Bem, Sice
C  Ø7.283 185.0mm  Accu, Balco, Hofmann, JBC, Snap-On
D  Ø7.268 184.6mm  Corghi
E  Ø7.087 180.0mm  Accu, CEMB, Coats, FMC, Ravaglioli, Rema Tip Tip
F  Ø7.000 178.0mm  Coats, Mondolfo
G  Ø6.937 176.2mm  Balco, JBC, Sun



Diagram/Instructions

Made in the USA !
