Wheel Balancing Guide

The Short Answer: Most wheel vibration complaints come down to how the wheel is mounted on the balancer, not the tire itself. Getting wheel balance right starts with proper cone selection and back cone mounting technique.

Tire balancing is one of the most common services a shop performs, yet vibration comebacks remain a persistent problem. Most balance issues are preventable with the right process. This guide covers the basics of wheel balancing, from balancer setup and cone selection to weight placement and mounting steps.

Why Wheel Balance Matters

Wheel balance refers to the even distribution of weight around a tire and wheel assembly. When a wheel assembly has a heavy spot, that imbalance creates vibration, especially at high speed. The vibration travels through the vehicle's suspension into the steering wheel and cabin.

Unbalanced tires affect more than ride comfort:

• Uneven tire wear: An off-balance wheel creates irregular road contact, wearing the tire unevenly and cutting its lifespan short.

• Vibration at speed: Drivers typically feel this in the steering wheel or seat at highway speeds, often starting around 55 to 65 mph.

• Suspension stress: Ongoing imbalance adds unnecessary wear to wheel bearings, shocks, and struts over time.

• Repeat comebacks: Vibration complaints after a recent tire service almost always point to a balance issue at the root.

New tires are one of the most common triggers for balance complaints. When a car tire is mounted fresh, even a small weight difference between the tire and rim creates noticeable vibration. Getting the balance right the first time protects both tire wear and your shop's reputation.

Wheel balance works alongside alignment, but the two address different problems. Alignment corrects the angle of the wheels. Balance corrects the weight distribution of the wheel tire assembly itself.

How a Wheel Balancer Works

A balancing machine spins the wheel and tire assembly at speed to detect imbalance. It reads how much balance weight is needed and where to place it on the rim. The technician then installs wheel weights, either clip-on or stick-on weights, at the positions the machine indicates.

The balancer can only measure what it is given. If the wheel is not centered correctly on the shaft, the machine produces inaccurate readings. That is the root cause of most vibration comebacks.

Hub Bore and Cone Selection

The hub bore is the center hole of the wheel. On the balancing machine, a cone slides onto the spindle shaft and centers the wheel through this hole. Cones are manufactured in different sizes and tapers.

The taper of the cone makes a major difference in accurate centering. Cones with a low taper fit the hub bore precisely and guide the wheel into a centered position during mounting. Using the wrong cone causes off-axis rotation. That means the balancer generates readings for a position the wheel will not actually sit in once it is on the vehicle.

Aftermarket Wheels and Centering

Aftermarket wheels often have center bores that do not match the vehicle hub exactly. For these, the cone centering method may not produce accurate results. Lug-centric mounting systems are the better option for aftermarket wheels. For standard passenger car tires on factory wheels, proper cone selection is usually sufficient.

A reliable shop rule: always back cones and use a pin plate system to apply equal pressure across the wheel assembly.

Back Cone Mounting: Step by Step

Back cone mounting is the standard approach for most wheel and tire assemblies. The cone mounts from the backside of the wheel rather than the front. This provides better centering for the majority of wheel types a tire shop handles.

Follow these steps for accurate mounting:

1. Select the right cone: Choose a cone sized to fit the hub bore of the wheel. A snug, low-taper fit gives the most accurate centering.

2. Mount the cone from the back: Slide the cone onto the balancer spindle shaft, then position the cone into the hub bore from the rear of the wheel.

3. Install the pressure cup: Place the pressure cup on the spindle shaft against the front face of the wheel.

4. Thread on the hub nut: Hand-tighten the hub nut or quick nut against the pressure cup. Modern balancers use a quick nut that bypasses shaft threads for faster tightening.

5. Roll the wheel as you tighten: Roll the wheel toward you while tightening the hub nut. This helps the wheel roll up the taper of the cone naturally instead of being forced into position.

6. Verify seating: Before spinning, visually confirm the wheel sits evenly on the cone with no gap or tilt.

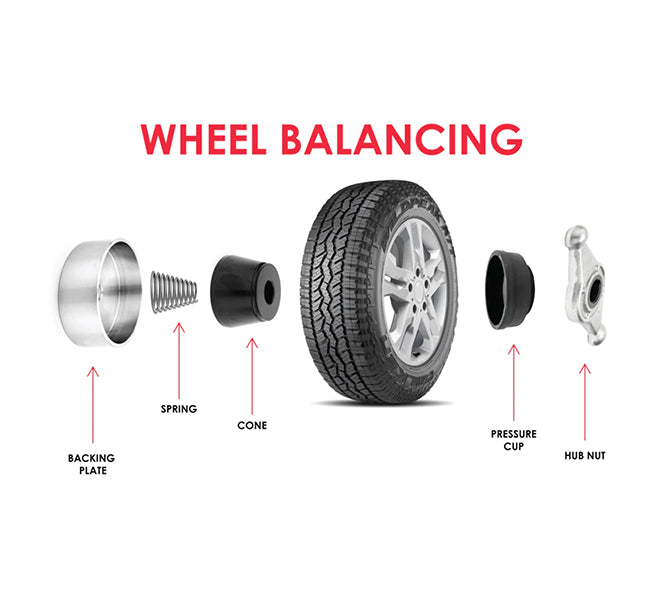

Components of the Mounting Assembly

Knowing what each part does helps technicians spot problems before the machine even starts:

• Backing plate and spring: Sits at the base of the assembly and holds components in place on the shaft.

• Centering cone: Fits the hub bore and guides the wheel into true center on the spindle.

• Tire and wheel assembly: The wheel and mounted car tire being balanced.

• Pressure cup: Applies even pressure against the wheel face to hold the assembly steady.

• Hub nut or quick nut: Secures the entire assembly onto the spindle shaft.

Static Balancing vs. Dynamic Balancing

Wheel balancing falls into two main categories. Understanding the difference helps shops match the right method to the job.

Static Balance

Static balancing corrects weight imbalance in a single plane, the up-and-down axis of the wheel. A static balancer, also called a bubble balancer, measures this type of imbalance. Static balance problems typically cause a wheel to hop or bounce, most noticeably at lower speeds.

Static balancing works well for:

• Narrow tires where the width is small relative to the diameter

• Specialty tire applications that require single-plane correction

• Some off-road setups where dynamic balancing is not required

Dynamic Balancing

Dynamic balancing corrects imbalance in two planes at once, both side-to-side and up-down. A dynamic wheel balancer, also called a spin balancer, handles this. Most modern tire machines in shops are set up for dynamic balancing. It is the standard for passenger car tires, rear wheel and front wheel positions, and high-performance applications.

The balancer tells the technician where to place wheel weights on both the inner and outer rim edge. Stick-on weights work well for alloy wheels where clip-on weights would damage the finish or be visible. Clip-on weights are standard for steel rims.

Some tire assemblies are difficult to balance with a spin balancer alone. Balancing beads offer an alternative for trucks and off-road applications. These small ceramic beads are installed inside the tire and redistribute weight automatically as the wheel spins.

Road force balancing is another option for tough cases. A road force balancer simulates vehicle weight pressing on the tire during rotation. It detects flat spots, valve stem irregularities, and tire stiffness variation that a standard spin balance will not find.
