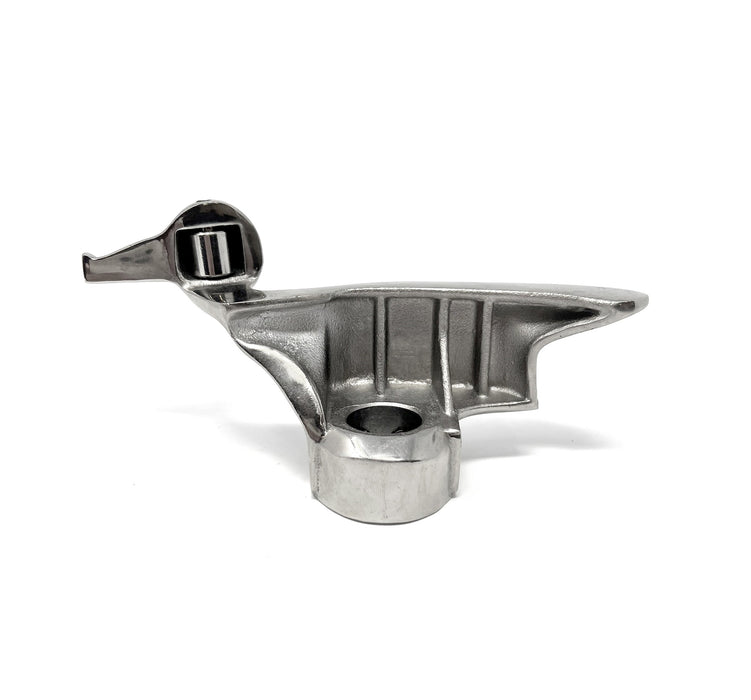

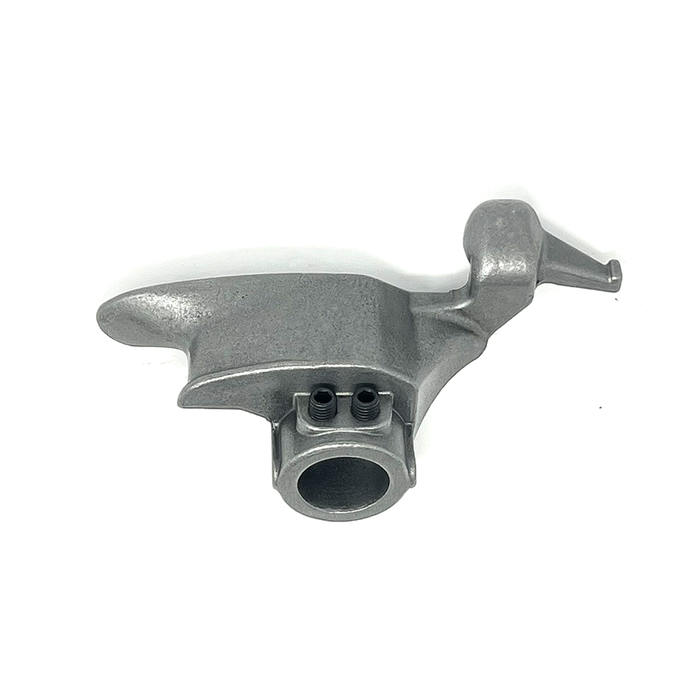

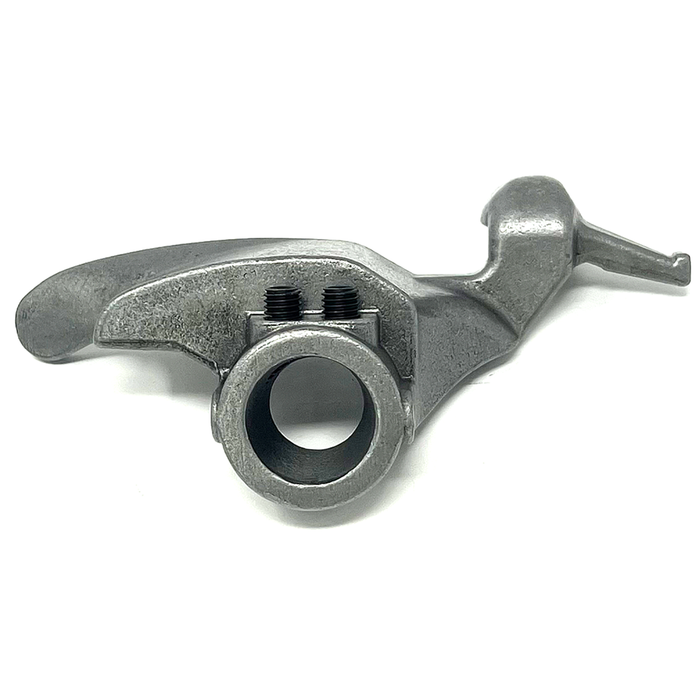

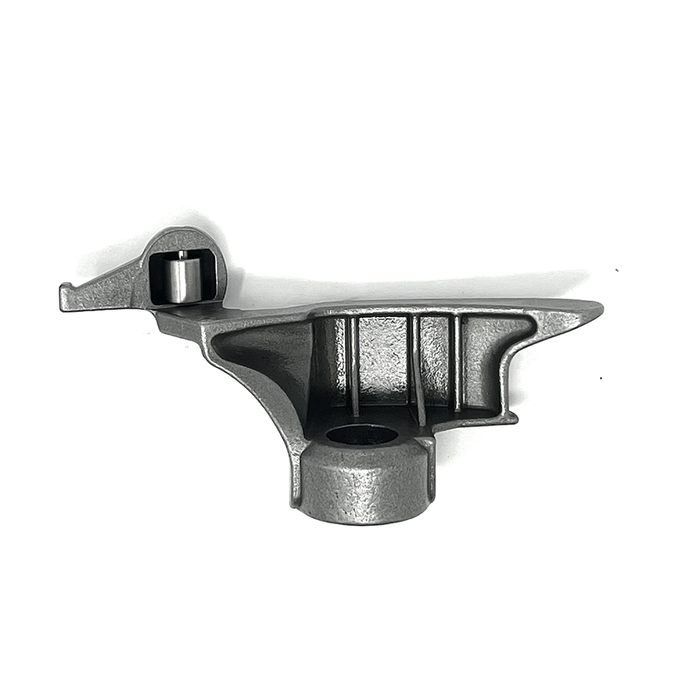

Metal MOUNT - DEMOUNT HEAD for newer Coats brand tire changers with ROUND & TAPERED mounting stud* (the part on the bottom of the bar where the shoe mounts - you can't see it until you remove the head).
Includes the set screws for adjusting the angle.
Fits the following tire changer brands:
Coats models: 5040, 5050, 5060*, 5065*, 5070, 7050, 7060, 7065, & 7665, 70XAF3 and some 5030. Also fits APX80A, APX80E, APX90A, and APX90E IF they have the tapered stud. (the bar it mounts on may need to be pulled out, rotated 180 degrees, and re-installed on APX models). If you need help determining whether this head will fit your machine, contact us.
*Note: on 5060 and 5065 models make sure the shaft is tapered as some models came with a straight cut shaft Replace
Also fits Coats Baseline model BL200, BL300, BL500.
Interchangeable Part Numbers:
TC182788, TC 182788, 182788, 8182788, 8182753, 81827881, 8183781, 182026, 8182026, 8182753
Coats # 8182788, 8182753, 182788, 182753

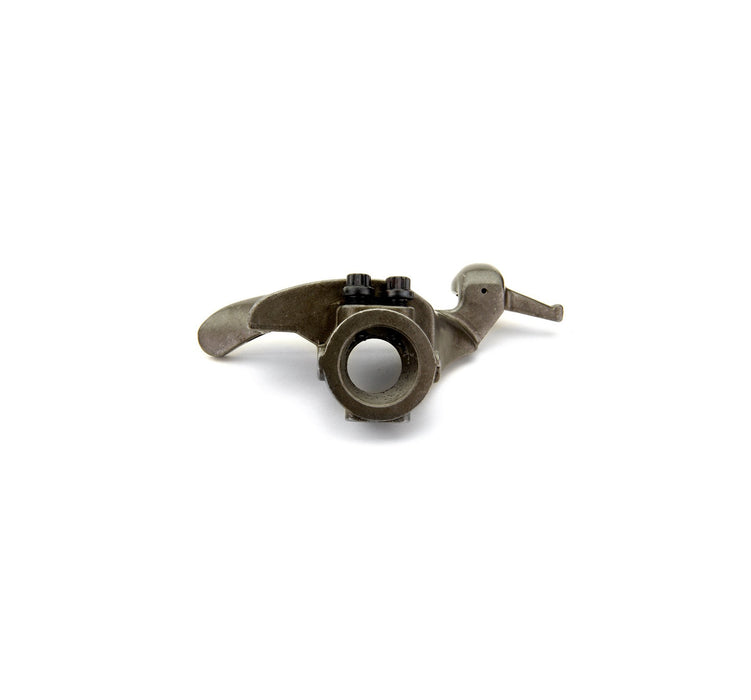

When selecting a head for a your Coats tire changer, reference the second picture shown on this page. The stub sticking out of the shaft that holds the head will be either tapered (smaller on the bottom than the top) or it will not be. This head only fits tapered studs.
Need help with finding a part for your tire changer part? Click here for the parts list!
